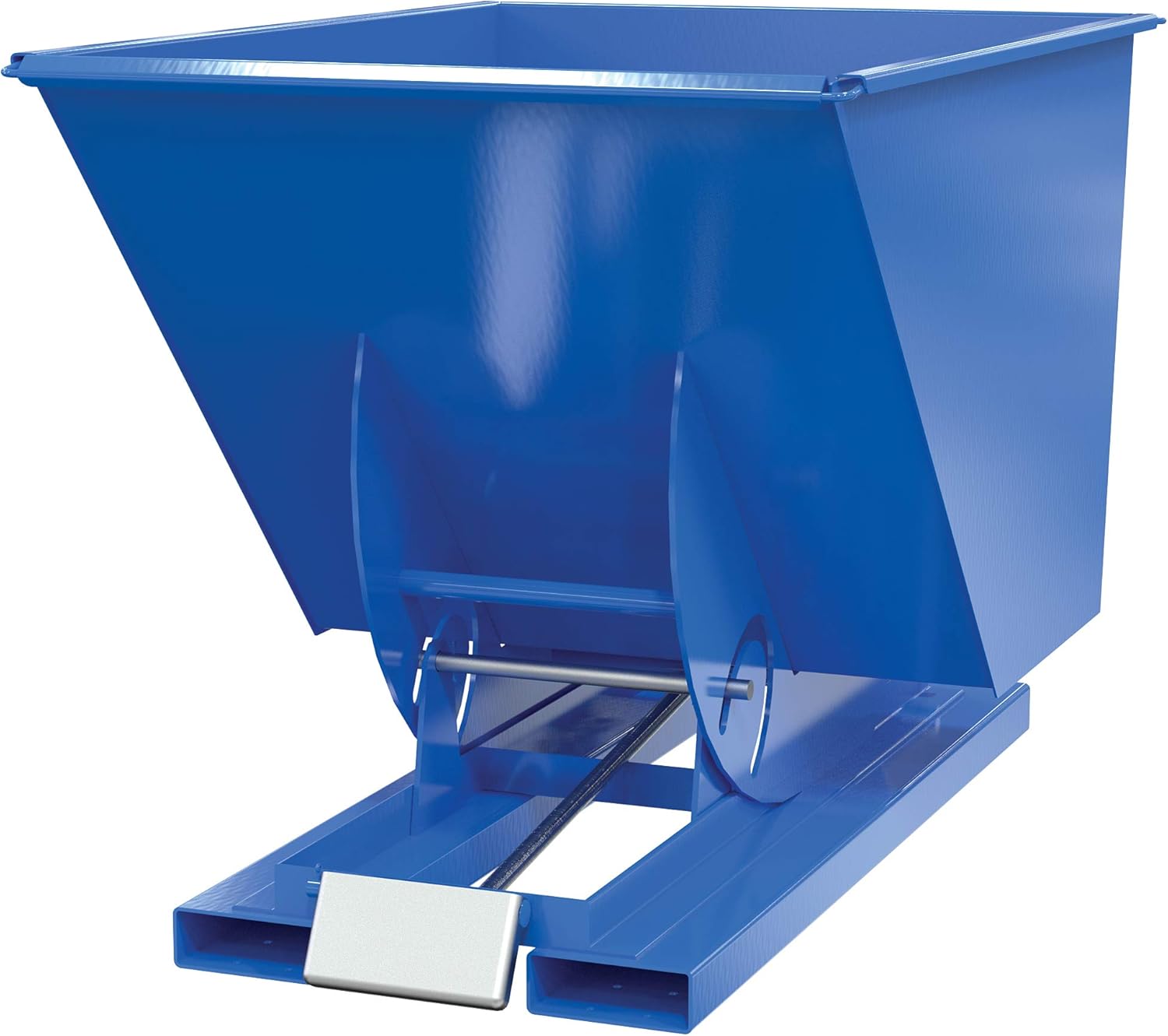

Vestil D-100-MD Steel Medium Duty Self Dumping Hopper 1 Cubic Yard 4000 Lb. Capacity Blue

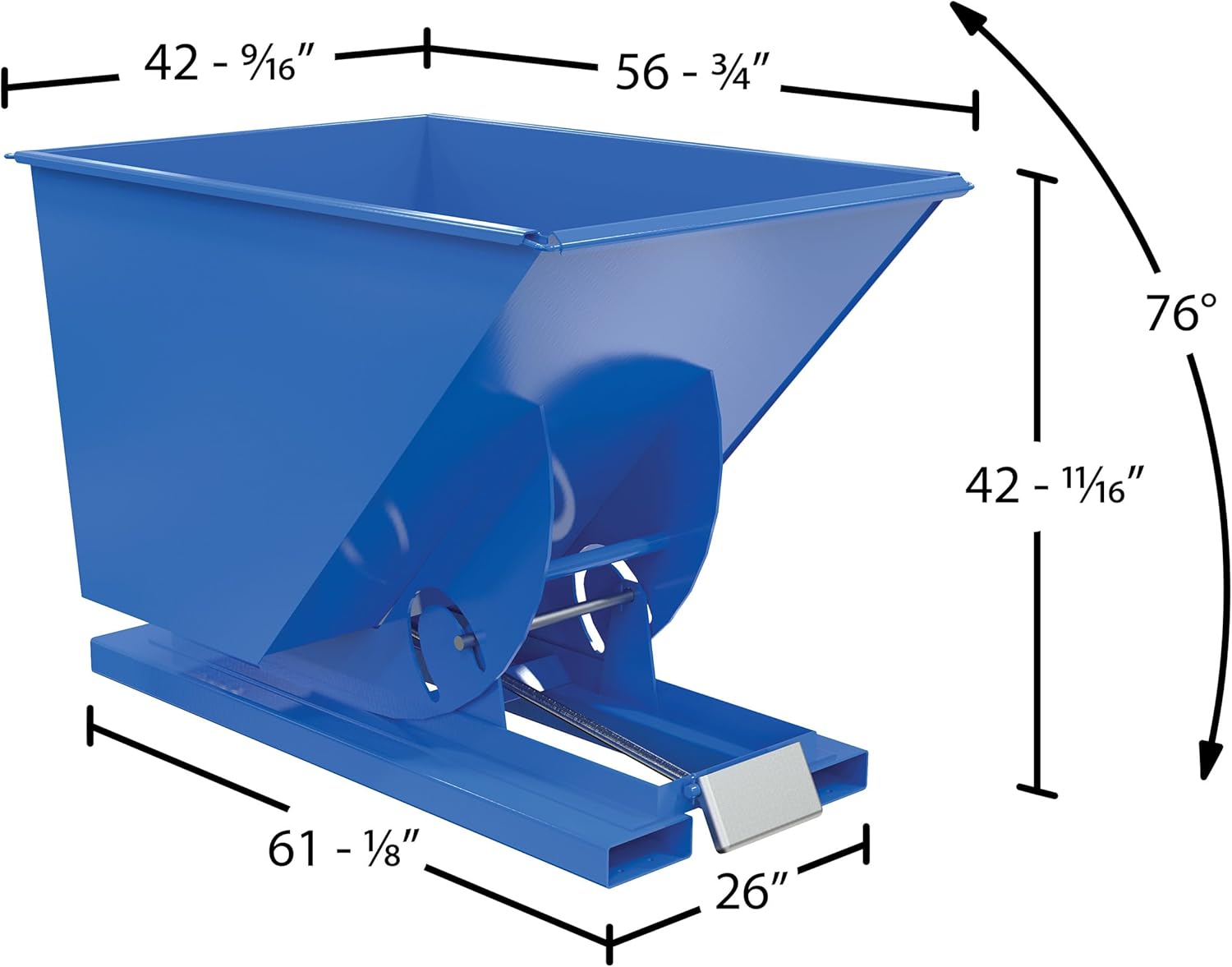

The Vestil D-100-MD self-dumping hopper with bumper release is for storing and moving dry bulk materials. It is made of welded 10 gauge steel for strength, has a blue powder-coat finish for more durability than paint, and can hold up to 1 cubic yd. of material weighing up to 4,000 lb. The hopper can be moved with a forklift truck, and the attached safety restraint can be used to secure the hopper to the carriage of the truck. It automatically dumps when the bumper release contacts the side of a dumpster, or it can be manually released from the seat of the forklift truck with the attached cable. The hopper automatically returns to the upright and locked position after it is dumped. A second hopper can be stacked on top if it is turned 90 degrees relative to the bottom hopper. This self-dumping hopper measures 42-3/4 x 41-1/4 x 61 inches (H x W x D). (H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.)SpecificationsCapacity4,000 lb.Volume1 cubic yd.Material10 gauge steel with blue powder-coat finishFork pocket width7-1/2"Fork pocket height2-1/2"Fork pocket centers18"Cable length48"Weight553 lb.Dimensions*42-3/4 x 41-1/4 x 61 inches (H x W x D)*H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.Vestil manufactures materials handling equipment, including hoists and trolleys, jib and gantry cranes, loading dock equipment, and storage solutions. The company, founded in 1968, is headquartered in Angola, IN.

• Self-dumping steel hopper for storing and moving dry bulk materials
• Capacity of 4,000 lb. and 1 cubic yd.
• Bumper release for automatic dumping when bumper contacts side of dumpster
• Cable for manual release from the seat of the forklift truck
• Vestil self-dumping hoppers facilitate compliance with OSHA General Industry rule 29 CFR 1910.178(m)(5)(iii) by allowing lift truck operators to remain at the controls of their truck throughout the dumping process.
